An insert that's even an inch too big simply won't go in — and one that's too small leaves ugly gaps and wasted heating capacity. Before you compare brands or prices, you need five measurements from your existing firebox. This guide walks you through exactly what to measure, how to read a size chart, and how to match the numbers to the right unit the first time.
The Five Measurements That Matter
Grab a tape measure and record these from your existing masonry or factory-built firebox. Measure in inches, and always note the smallest figure if the opening tapers:
- Opening width (front): side to side across the front of the firebox opening
- Rear width: side to side at the back wall — most fireboxes narrow toward the rear, and this is the measurement that catches people out
- Opening height: floor of the firebox to the top of the opening (lintel)
- Depth: front edge to the back wall, measured at the floor
- Hearth depth in front: how far your non-combustible hearth extends into the room — most inserts require 16–18 inches of protection in front of the unit
How to Read a Fireplace Insert Size Chart
Every insert lists two sets of dimensions: the firebox dimensions (the body that slides into your existing opening) and the surround or faceplate dimensions (the flange that covers the gap between insert and masonry). The rule is simple: the insert body must be smaller than your firebox in every dimension — width front and rear, height, and depth — while the surround must be larger than your opening so no brick shows through. If your rear width is 24 inches, a unit that's 25 inches at the back won't fit no matter what the front measurement says.
Common Insert Sizes: Small, Medium, and Large
- Small (fits openings ~28"W × 21"H × 14"D and up): heats roughly 800–1,200 sq ft — suited to older homes with compact fireboxes
- Medium (fits openings ~32"W × 23"H × 16"D and up): heats roughly 1,200–2,000 sq ft — the most common category for standard masonry fireplaces
- Large (fits openings ~36"W × 25"H × 18"D and up): heats 2,000+ sq ft — for generous fireboxes and open floor plans
Heating estimates vary with insulation, ceiling height, and climate — treat the square footage as a starting point and check each model's rated range on the product page.
Don't Forget the Chimney Liner
Nearly all modern wood-burning inserts require a full-height stainless steel liner, typically 6 inches in diameter, running from the insert's flue collar to the chimney top. Measure your chimney height (roughly, floor to cap) so you can budget the liner length — it's part of the real installed cost and affects draft performance more than any other component.
Measured Up? Match Your Numbers to a Unit
With your five measurements in hand, you can filter with confidence. Every product page in our fireplace insert collection lists the exact body and surround dimensions, so you can compare your firebox numbers directly against each spec sheet. If a model sits within an inch of your limits, contact us before ordering — clearances matter at that margin.

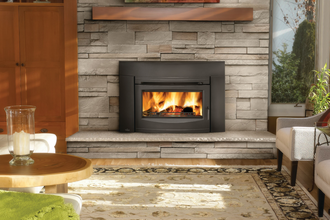

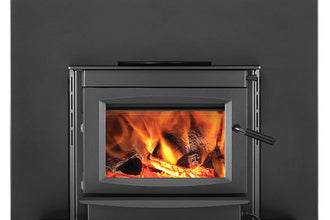

Every fireplace insert at Wood Fire Home ships free within the US, and Napoleon wood-burning appliances — including the EPI3C-1, EPI3T-1, and EPI3TN-1 Oakdale inserts — carry the President's Limited Lifetime Warranty.
By Matthew Murphy
